Rugged Industrial 10-port RJ45 Gigabit Ethernet Switch
Model:WXA-I010G
8×10/100/1000T RJ45
2×10/100/1000M Uplink
12-48VDC
Original price was: $49.00.$29.00Current price is: $29.00.
This Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch features a 12~48VDC wide-range power input. In addition, as an unmanaged industrial Ethernet switch, it adheres to key industrial standards, boasting reliable and user-friendly operation, robust vibration and shock resistance, and an extended operating temperature range—thus enabling seamless adaptation to diverse harsh industrial environments.
Furthermore, compliant with CE and FCC certifications, the switch undergoes 100% burn-in testing to guarantee consistent performance in industrial applications. As a result, it serves as a cost-effective solution for industrial Ethernet connectivity needs.
- 10 x 10/100/1000BASE-T Gigabit Ethernet RJ45 Copper Ports
- 12~48V DC Redundant Power with Reverse Polarity Protection
- Supports IEEE 802.3x Flow Control
- Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

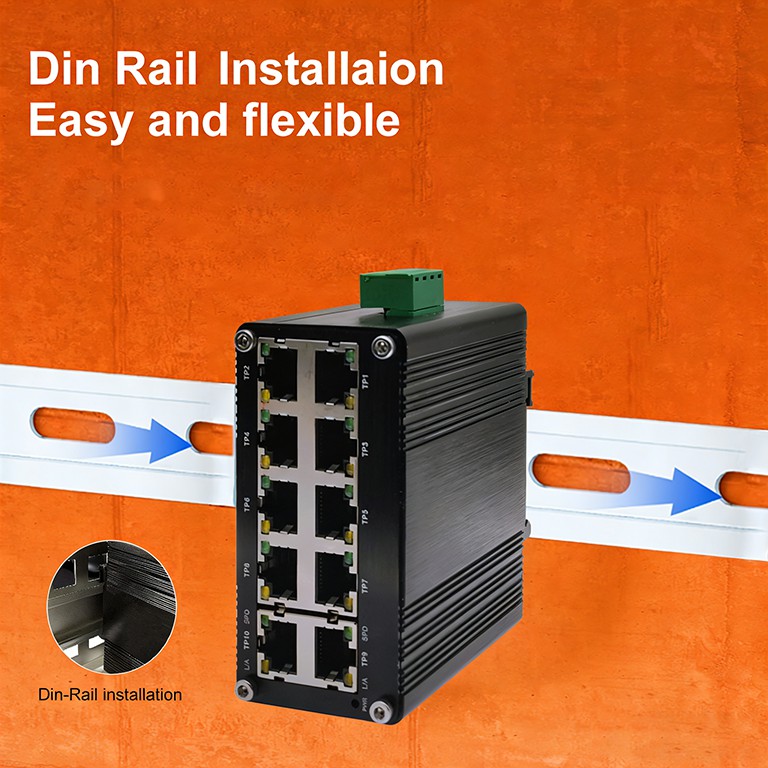

- Supports DIN-Rail Installation
- IP40-Rated Dustproof, Enclosed Design | Rugged High-Strength Metal Housing (Industry-Standard)
- Operating Temperature: -40°C to 80°C (-40°F to 176°F)
| Standards | IEEE 802.3/802.3u/802.3ab/802.3x/802.3az (EEE) |
| Forward & Filtering Rate | 14,880/148,800/1,488,000 pps (10/100/1000Mbps) |
| Packet Buffer | 2Mbits |
| Packet Length | 9216bytes |
| MAC Address Table | 4K entries |
| Switch Fabric | 20Gbps non-blocking |
| Switch Throughput | 14.88Mpps @64bytes |
| Connector | 10x 10/100/1000BASE-T RJ45 (auto-MDI/MDI-X) |
| Operating Temp | -40°C~80°C (-40°F~176°F) |
| Storage Temp | -40°C~85°C (-40°F~185°F) |
| Humidity | 5%~95% non-condensing |
| MTBF | >200,000 hrs |
| Input Power | 12~48VDC; Redundant power + reverse polarity protection |
| Power Consumption | <10W |
| Overload Protection | Automatic Resettable |
| Reverse Polarity | Present |
| Dimensions (W×D×H) | 95×88×46mm |
| Weight | 300g |
| Casing/Mounting | Aluminum Case; DIN-Rail mount |
| LED Indicators | PWR (Power), L/A (Link/Activity), SPD (Data Rate) |
| Certifications | ISO9001; EN55022:2010+AC:2011 Class A; EN61000-3-3:2013; EN55032:2017; IEC 61000-4-2/3/4/5/8 |
