Industrial 90W Gigabit PoE Splitter 5-36V DC Output With LED Screen

Name: Industrial 90W Gigabit PoE Splitter 5-36V DC Output With LED Screen
Price: 45 USD
Availability: InStock

Model: WXA-SPLT90-LED

1×RJ-45 PoE Port (Data & Power In)

1×RJ-45 Port (Data Out)

5-36V DC Output

Original price was: $59.00.Current price is: $45.00.

WXA-SPLT series is an industrial Gigabit 802.3bt PoE++ splitter with LED screen. It splits PoE

input into gigabit data and adjustable 5–36V DC power, plug-and-play without configuration.

Fanless aluminum casing supports DIN rail and wall mounting, works steadily from -40℃ to 80℃

for industrial use.

Ethernet
Standards:	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/ 100/ 1000Base-T: Cat5e or above, Shielded Recommended
Maximum Distance:	Cat5 UTP up to 100m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
PoE Output:	5V to 36V DC adjustable
Power Consumption:	Max 70W, 10A, via Cat5e cable or above
PoE (Power over Ethernet):
Standard:	IEEE802.3af/at/bt
Port:	RJ45
LED Display:
Power:	W
Temperature:	°C
Voltage:	V
Current:	A

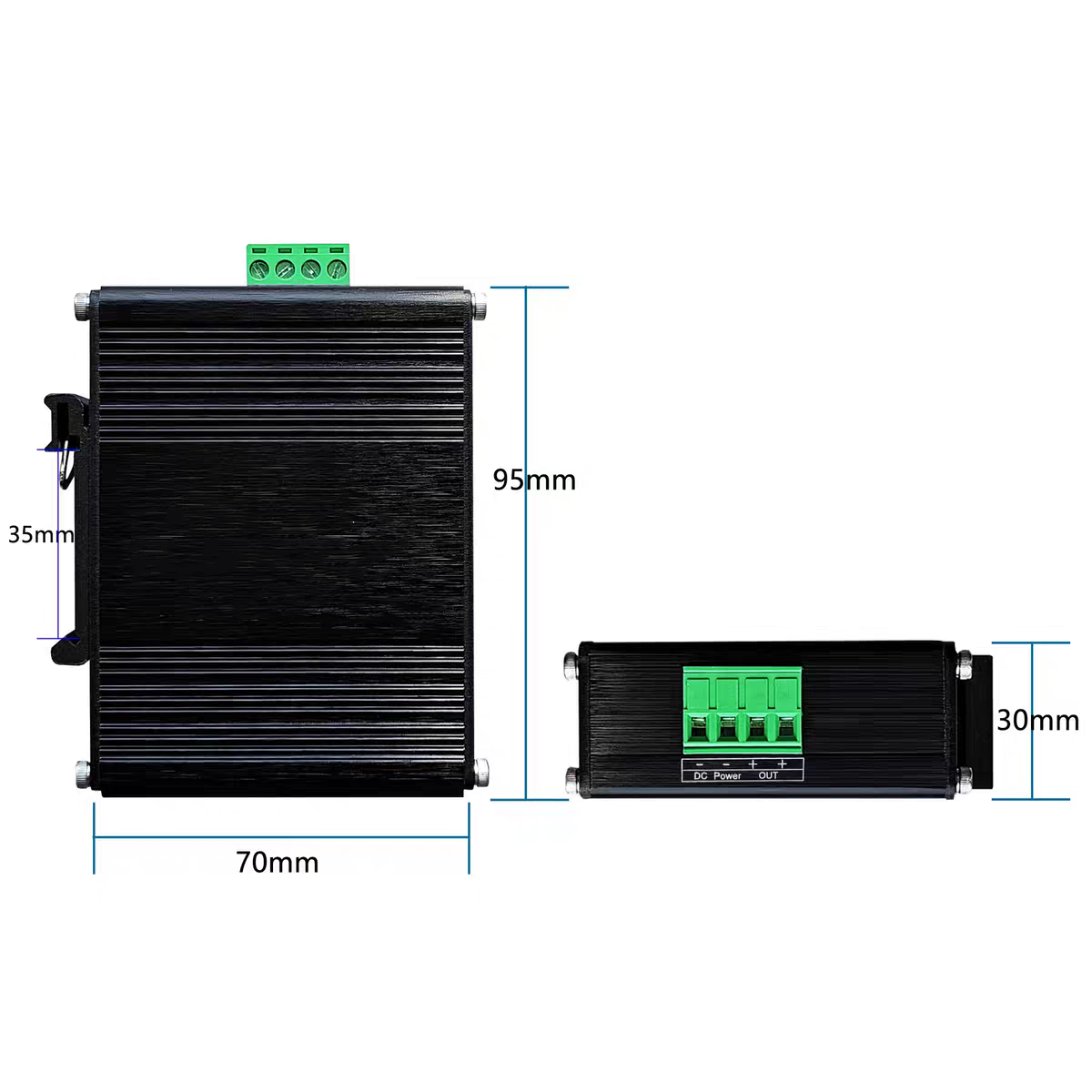

Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case

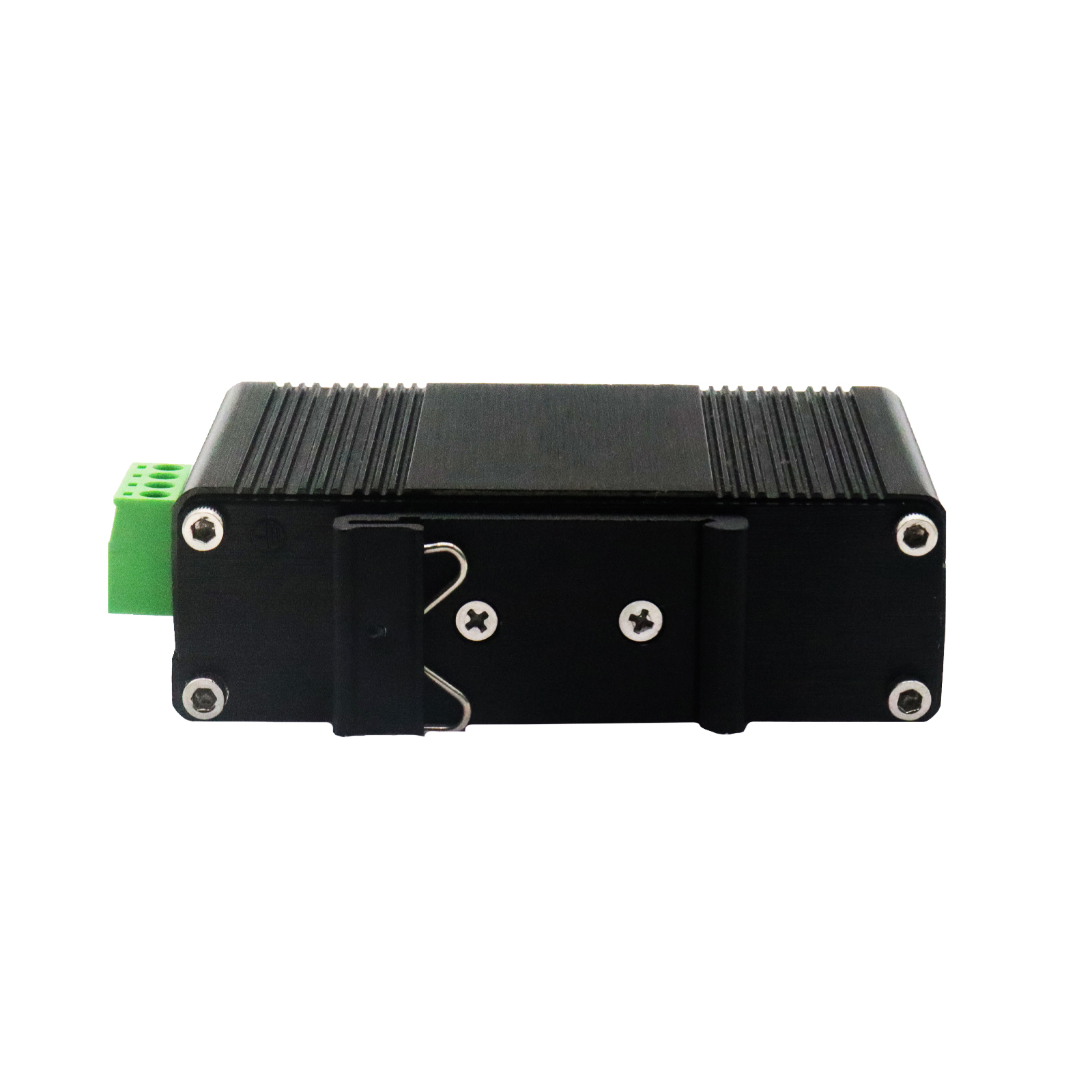

Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV
