Industrial 90W Gigabit PoE Splitter 12V DC Output
Model: WXA-SPLT90
1×RJ-45 PoE Port (Data & Power In)
1×RJ-45 Port (Data Out)
12V DC Output
Original price was: $59.00.$45.00Current price is: $45.00.
WXA-SPLT90 series is an Industrial Gigabit High Power PoE++ Splitter designed to deliver data, via an RJ-45 Ethernet connector, and electrical power, via a screw terminal block,run simultaneously to non-PoE devices.
12/19/24/36VDC can be optional according to requirement—all up to the Ethernet limit of 100 meters and no tools or software configuration, and providing ease of use, flexible installation, and high reliability applications.
- Splits power and data from PoE Input
- One RJ-45 PoE Port (Data & Power In)
- One RJ-45 Port (Data Out)
- 12/ 19/24/36VDC Output Optional (2-pin Terminal Block)
- Support IEEE802.3af/at/bt PoE++
- Support 10/100/1000Base-T
- Distance up to 100 meters

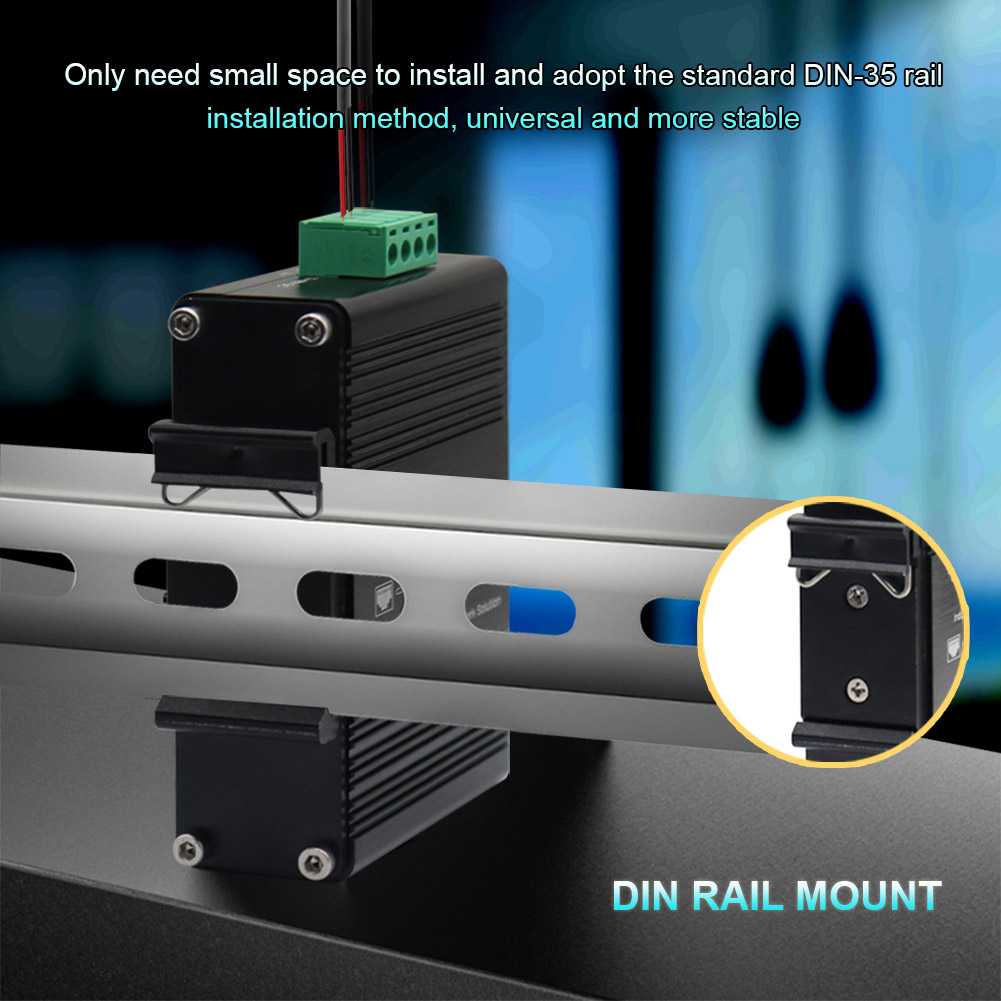

- Support DIN-Rail & Wall-Mount Installation
| Standards/Processing Type | IEEE 802.3at/bt (PoE); Forward (Half/Full-duplex) |
| Forward Filter Rate/Cabling/Distance | 1,488,000 pps (1000Mbps); Cat5+ (10/100/1000Base-T); 100m (Cat5 UTP) |
| Connector/PoE Output | 2x RJ45;
36W 12VDC (PoE output) 36W 19VDC(PoE output) 40W 24VDC(PoE output) 70W 36VDC(PoE output)
|
| Operating/Storage Temp | -40°C~80°C (-40°F~176°F); -40°C~85°C (-40°F~185°F) |
| Humidity/MTBF | 5%~95% non-condensing; >200,000 hrs |
| Power Consumption/Dimensions/Weight | 41W Max(12/19/24V Model),75W(36V Model)
; 95×70×30mm; 0.25Kg |
| Casing/Mounting/LED Indicators | Aluminum Case (DIN-Rail/Wall-mount); Power(5/12/19/24/36VDC Output), PoE(Power In) |
| Certifications | ISO9001; FCC Part 15 Class A; EN55022:2006+A1:2007 Class A |
| Protection Level | RJ45:1KV; Power:500V; ESD:4KV/8KV |
