19” 2U 14-Slot Hot-Swappable Media Converter Chassis Dual PSU for Fiber Transceivers
Model:WXA-C010G-14S
AC 100-240V
80KM Max.
Not including Converters
Original price was: $59.00.$43.90Current price is: $43.90.

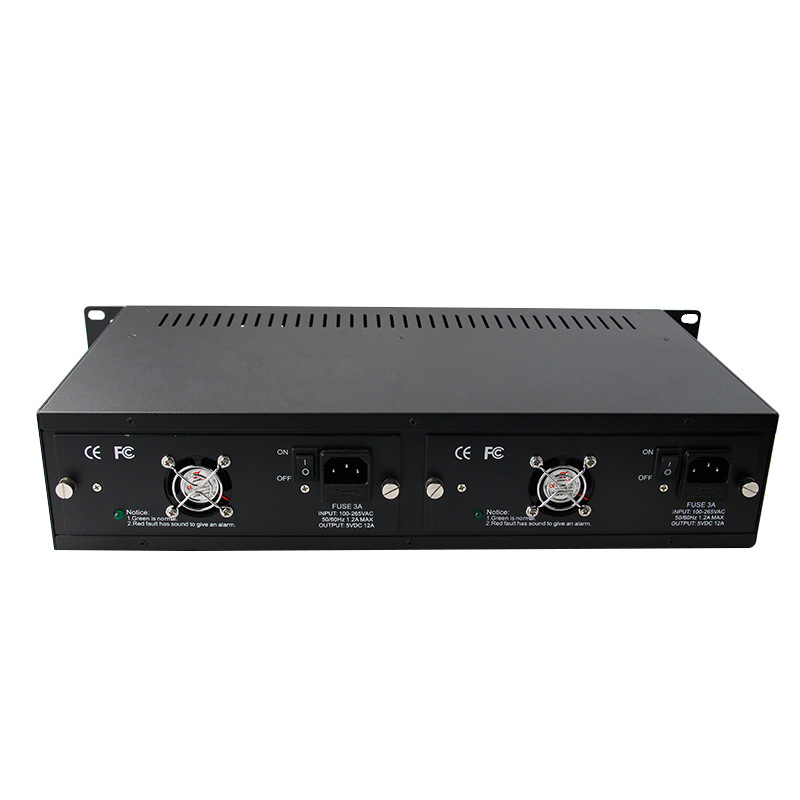

This standard 2U 19-inch rack-mount chassis is engineered for centralized deployment of fiber optic transceivers/media converters, featuring 14 plug-in modular slots and optional dual redundant hot-swappable power supplies. It simplifies cabling, reduces point-of-failure, and enables one-stop monitoring/maintenance for dense network rooms, with rugged steel build and efficient front-to-back cooling.
- Standard 2U (88.9mm) height, 19-inch (482.6mm) width, fully compatible with global server cabinets
- 14 universal slots, supports mixed installation of 10/100/1000M fiber transceiver modules (SFP/SFP+ optional)
- Dual redundant PSU (AC 100–240V/DC -48V optional), automatic failover, hot-swap without powering down
- Built-in fan array+ventilation grilles, effective heat dissipation for 24/7 operation
- Heavy-gauge cold-rolled steel, anti-EMI shielding, suitable for industrial and carrier-grade environments
- Front LED indicators (Power/Link/Active/Fault), tool-free module insertion, quick on-site service
| Item | Specification |
|---|---|
| Rack Standard | 2U (88.9mm height), 19-inch (482.6mm width) |
| Slot Count | 14 modular hot-swappable slots |
| Power Supply | Single/dual redundant hot-swappable; AC 100–240V 50/60Hz or DC -48V (optional); output DC 5V high current |
| Material | Cold-rolled steel with black anti-corrosion powder coating |
| Cooling System | Dual axial fans, front-to-back airflow, temperature-controlled speed |
| Dimensions (W×H×D) | 482.6 × 88.9 × 450/500/600 mm (depth customizable) |
| Operating Temp | -10°C to +55°C |
| Storage Temp | -40°C to +70°C |
| Relative Humidity | 5% – 90% (non-condensing) |
| EMI Protection | Compliant with EN 55032, FCC Part 15 Class A |
Related products
-
Rugged Industrial 3GE+1SFP Gigabit PoE Switch
Original price was: $85.00.$65.00Current price is: $65.00.Model:WXA-I03G-1SFP-P90
3×10/100/1000T RJ45
802.3 at 30W PoE
1×100/1000X SFP
12-48VDC Voltage Booster
-

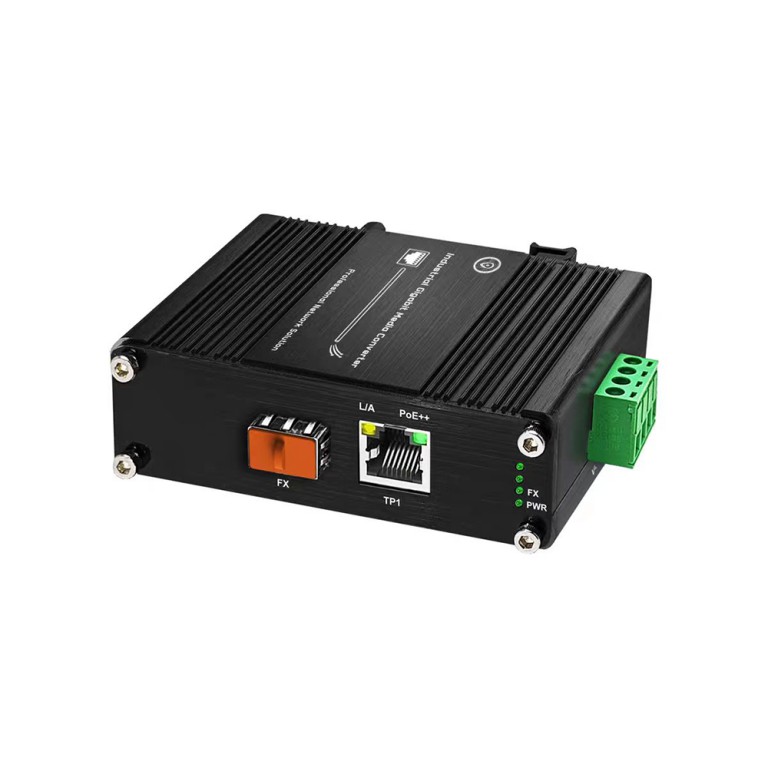

Industrial Gigabit 90W PoE++ Media Converter 1G RJ45+1G SFP
